High-End Bladder Curing Press For Motorcycle Tire Production Plant

High-End Bladder Curing Press For Motorcycle Tire Production Plant

A motorcycle tire bladder curing machine is specialized equipment used in the manufacturing and vulcanization process of motorcycle tires. It plays a critical role in shaping and curing the tire, ensuring it achieves the desired strength, durability, and performance characteristics. Below is an overview of how it works and its key components:

Key Components of a Motorcycle Tire Bladder Curing Machine

1. Bladder (Curing Membrane):

   • A flexible, heat-resistant rubber bladder is inserted into the uncured tire.

   • It expands under pressure to shape the tire and ensure proper contact with the mold.

2. Mold:

   • The mold defines the tread pattern, sidewall design, and overall shape of the tire.

   • It is typically made of durable materials like steel or aluminum.

3. Heating System:

   • Provides the heat necessary for vulcanization, a chemical process that converts raw rubber into a durable, elastic material.

   • Heating can be done via steam, hot water, or electric heating elements.

4. Pressure System:

   • Applies internal pressure to the bladder, forcing the tire to conform to the mold's shape.

   • Pressure is usually supplied by steam, compressed air, or nitrogen.

5. Control System:

   • Modern machines use programmable logic controllers (PLCs) to automate the curing process.

   • Operators can set parameters like temperature, pressure, and curing time.

6. Clamping Mechanism:

   • Secures the mold halves together during the curing process to ensure a tight seal.

How It Works

1. Preparation:

   • The uncured tire (green tire) is placed inside the mold.

   • The bladder is inserted into the tire cavity.

2. Mold Closure:

   • The mold halves are clamped together, enclosing the tire and bladder.

3. Heating and Pressurization:

   • The bladder is inflated with steam or compressed air, forcing the tire to expand and conform to the mold's shape.

   • Heat is applied to initiate the vulcanization process.

4. Curing:

   • The tire is held under heat and pressure for a specific duration to ensure complete vulcanization.

   • This process cross-links the rubber polymers, enhancing strength and elasticity.

5. Cooling and Mold Opening:

   • After curing, the mold is cooled, and the bladder is deflated.

   • The mold is opened, and the finished tire is removed.

Applications

• Motorcycle Tire Manufacturing:

  • Used to produce tires for various types of motorcycles, including street bikes, off-road bikes, and racing motorcycles.

• Custom Tire Production:

  • Enables the creation of tires with specialized tread patterns or compounds for specific applications.

Advantages

• Precision: Ensures consistent tire dimensions and quality.

• Efficiency: Automates the curing process, reducing labor costs and production time.

• Versatility: Can be adapted for different tire sizes and designs.

Considerations

• Bladder Maintenance: The bladder must be regularly inspected and replaced to prevent defects in the tire.

• Energy Consumption: Heating and pressurization systems can be energy-intensive.

• Mold Design: High-quality molds are essential for producing tires with accurate tread patterns and dimensions.

If you're looking for specific manufacturers or models of motorcycle tire bladder curing machines, companies like Harbour Rubber Machinery, McNeil & NRM, and Krupp Rubber Machinery are well-known in the industry. Let me know if you'd like more detailed information!

Below is a parameter table for a typical motorcycle tire bladder curing press. These parameters are essential for understanding the specifications and operational requirements of the machine. The values provided are general and may vary depending on the manufacturer, tire size, and specific application.

Motorcycle Tire Bladder Curing Press Parameter Table

Notes:

1. Customization: Many parameters (e.g., mold size, bladder size, curing time) can be customized based on the specific requirements of the tire being produced.

2. Advanced Features: Modern machines may include features like touchscreen interfaces, real-time monitoring, and automated bladder insertion/removal systems.

3. Safety: Proper safety mechanisms (e.g., pressure relief valves, emergency stops) are critical for operator safety and machine longevity.

If you need more specific details or assistance with selecting a machine, feel free to ask!

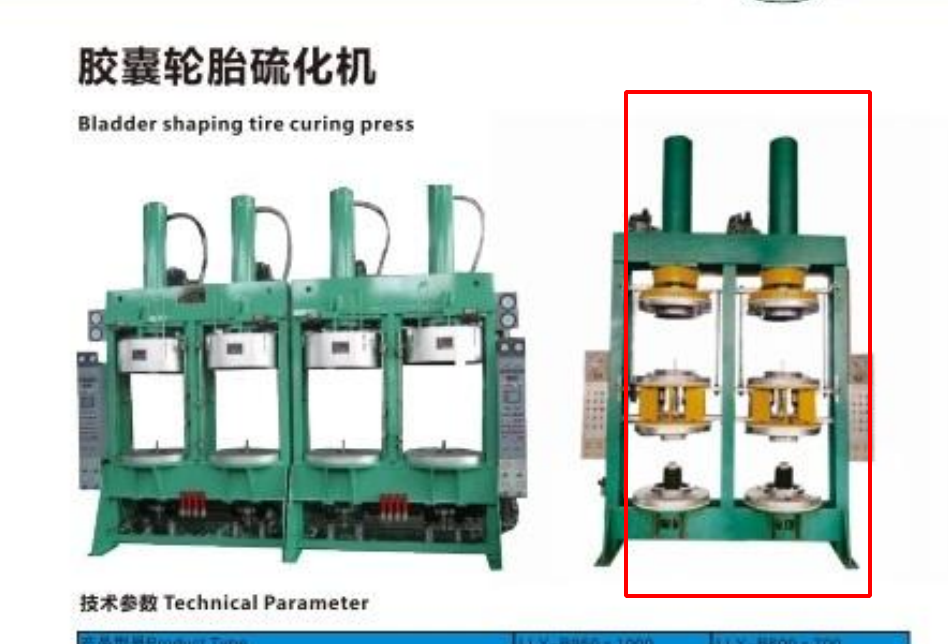

High-End Bladder Curing Press For Motorcycle Tire Production Plant Images
